Cylinder Head Specifications: Combustion chamber volume: 75cc / 84cc; Intake runner volume: 210cc; Exhaust runner volume: 70cc; Intake valve diameter: 2.140"; Exhaust valve diameter: 1.81"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .600"; Rocker stud: N/A; Guideplate: N/A; Pushrod diameter: 3/8"; Valve angle: 15°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat * Deck thickness: 5/8", pushrod diameter: 3/8". Vacuum advance distributor may not clear cylinder head.
Edelbrock Big-Block Chrysler 440 Hardened Steel Pushrod set for Hydraulic Flat Tappet camshafts. Pushrod O.D. 3/8" Length 9.125" (SET OF 16).
Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L);Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)

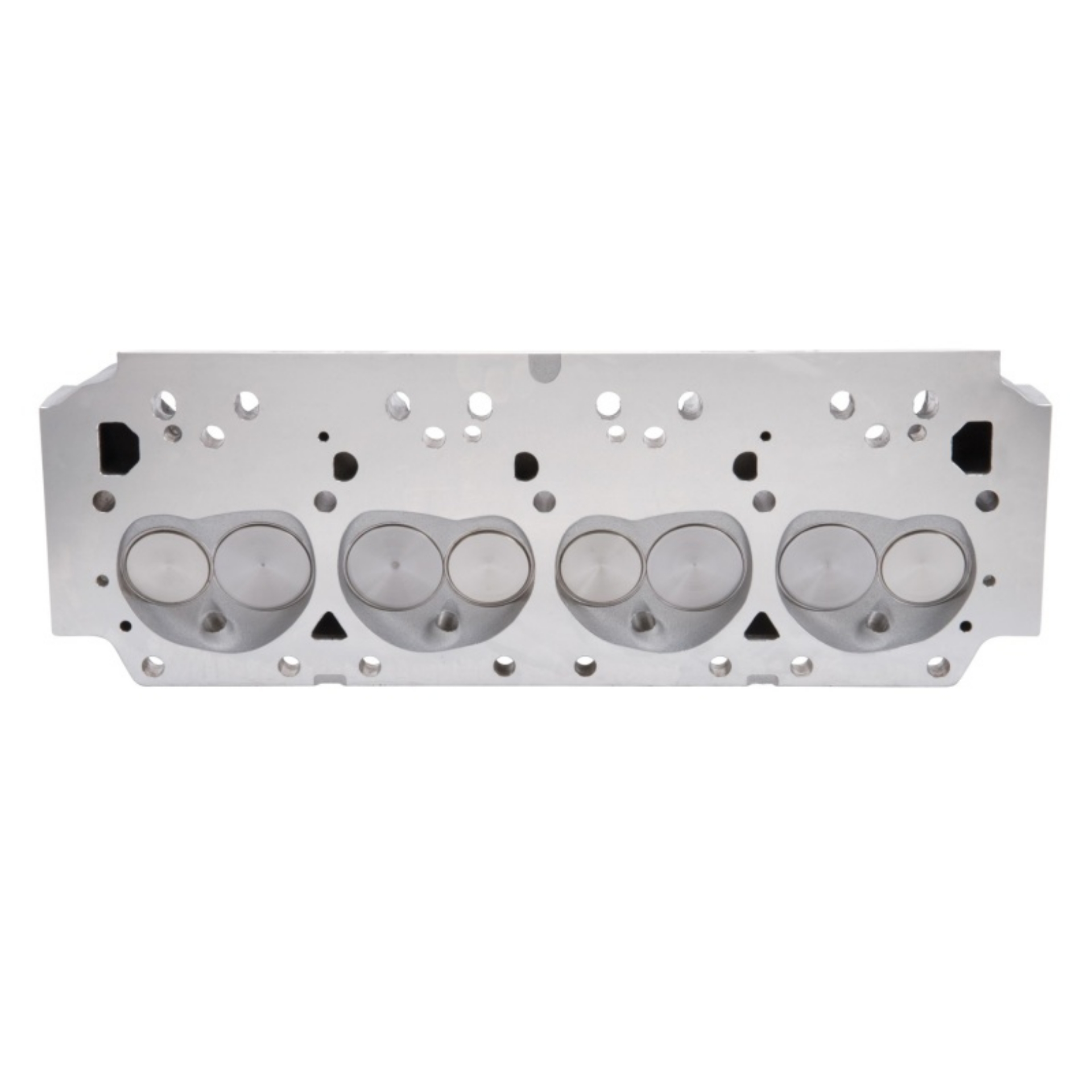

Edelbrock Cylinder Head; E-Street; Big Block Chrysler; 75cc Chamber; Complete; Pair
Edelbrock Cylinder Head E-Street Big Block Chrysler 75cc Chamber Complete Pair
Edelbrock; BBC Head; Street Cylinder Heads; 75cc; V8; Cylinder Heads; 5090
Edelbrock, BBC Head, Street Cylinder Heads, 75cc, V8, Cylinder Heads, 5090
Cylinder Head; E-Street; Big Block Chrysler; 75cc Chamber; Complete; Pair
Big-Block Chrysler E-Street Cylinder Heads 75cc
