Cylinder Head Specifications: Combustion chamber volume:-?64cc /68cc, Intake runner volume:-?185cc / 225cc / 260cc, Exhaust runner volume:-?75cc / 88cc, Intake valve diameter:-?2.02in (185cc) / 2.10in (225cc), Exhaust valve diameter:-?1.60in, Deck thickness:-?9/16in, Valve spring diameter:-?1.46in, Valve spring diameter:-?1.46in, Valve spring maximum lift:-?.575in, Rocker stud:-?3/8in (185cc) / 7/16in (225cc), Guideplate:-?Hardened steel, Pushrod diameter:-?5/16in, Valve angle:-?23, Spark plug fitment:-?14mm x .750 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in reach with flat gasket seat. IMPORTANT NOTES, To use stock rockers on small-block Chevy heads, .100in longer than stock pushrods are required. Edelbrock pushrods No.9629 are recommended for use with flat tappet cams only. S/B Chevy heads may not be used on engines with less than 4in bore (262, 265, 267, 283, 305, 307 c.i.d.) except with cams having less than .450in valve lift. Replacement valve part numbers are for sets of 8.
Cylinder Head Specifications: Combustion chamber volume: 64cc /68cc; Intake runner volume: 185cc / 225cc / 260cc; Exhaust runner volume: 75cc / 88cc; Intake valve diameter: 2.02" (185cc) / 2.10" (225cc); Exhaust valve diameter: 1.60"; Deck thickness: 9/16"; Valve spring diameter: 1.46"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: 3/8" (185cc) / 7/16" (225cc); Guideplate: Hardened steel; Pushrod diameter: 5/16"; Valve angle: 23°; Spark plug fitment: 14mm x .750 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. IMPORTANT NOTES; To use stock rockers on small-block Chevy heads, .100" longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended for use with flat tappet cams only. S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 267, 283, 305, 307 c.i.d.) except with cams having less than .450" valve lift. Replacement valve part numbers are for sets of 8.

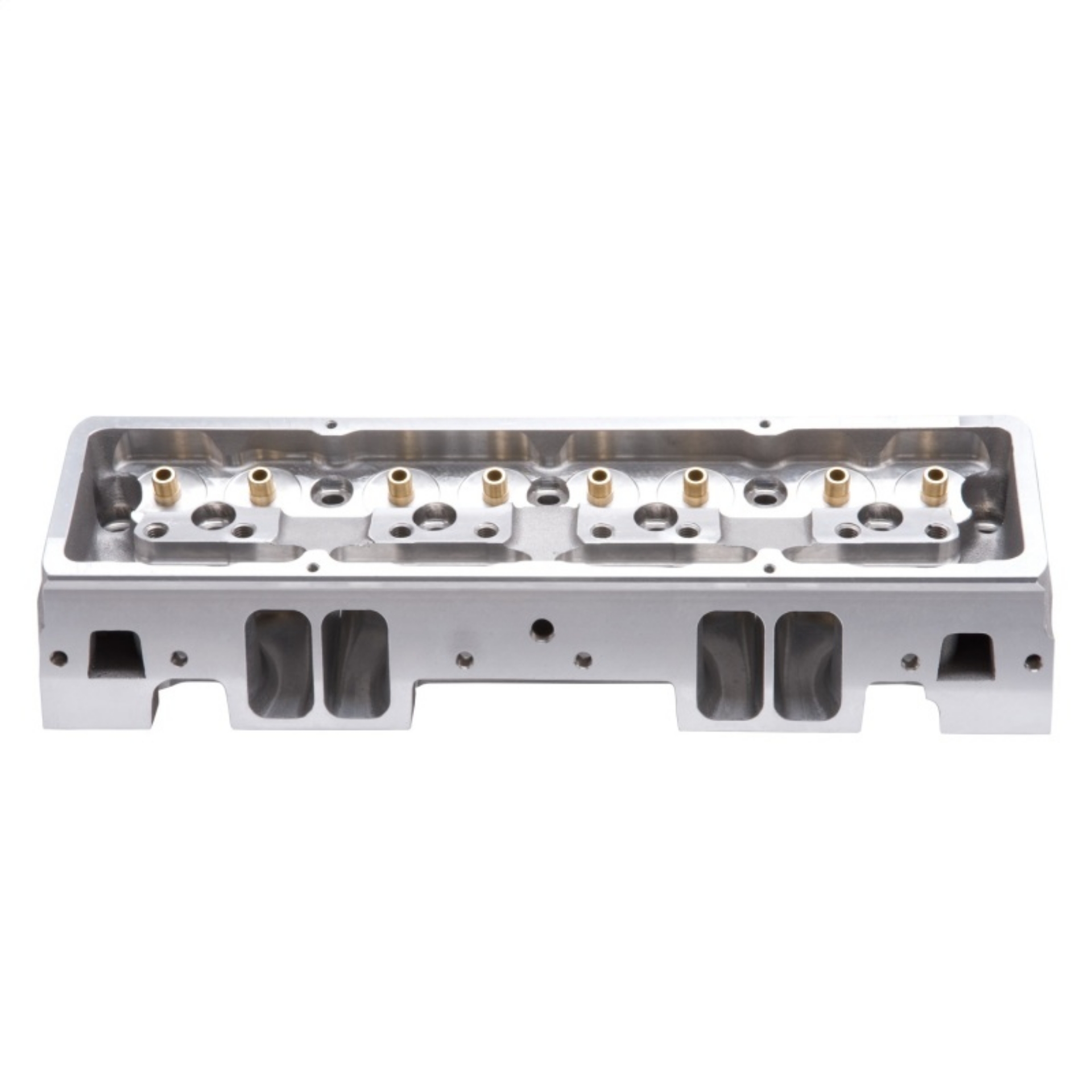

The Edelbrock part #61205 Small Block Chevy E-CNC 225 cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift.
Edelbrock E-Force Supercharger Stage 1 Street System part #1558 is designed for use with 2016 Camaro SS LT1 and an automatic transmission.
Edelbrock; SBC; 225; CNC; Small Block Chevy; Cylinder Head; V8; Cylinder Heads; 61205
Edelbrock, SBC, 225, CNC, Small Block Chevy, Cylinder Head, V8, Cylinder Heads, 61205
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
E-CNC 225 Small-Block Chevy Cylinder Head 70cc Hydraulic Roller
E-CNC 225 Small-Block Chevy Cylinder Head 64cc Hydraulic Roller
Edelbrock Cyl Head SBC 23 Deg E-Cnc 225 Hyd Roller
CYL HEAD SBC 23 DEG E-CNC 225 HYD ROLLER
