Cylinder Head Specifications: Combustion chamber volume: 60cc, Intake runner volume: 190cc, Exhaust runner volume: 90cc, Intake valve diameter: 2.05in, Exhaust valve diameter: 1.60in, Valve stem diameter: 11/32in, Valve guides: Manganese bronze, Deck thickness: 5/8in, Valve spring diameter: 1.55in, Valve spring maximum lift: .580in, Rocker stud: 7/16in, Guideplate: Hardended steel, Pushrod diameter: 5/16in, Valve angle: Same as OE 9.5, Exhaust port location: Stock, Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets on pages 84-85. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4in reach with flat gasket seat (Champion RC12YC). Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate). Valve sizes are recommended, not maximum. IMPORTANT NOTE: G?Compact chargeGg kidney shape combustion chamber design. Intake and exhaust ports based on 2V design. Optimized spark plug location provides improved header clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate). Valve sizes are recommended, not maximum. Performer RPM Clevor cylinder heads with 7/16in bolts on 289/302 engines, use Edelbrock stepped head bolt washer kit No.9680.
Cylinder Head Specifications: Combustion chamber volume: 60cc; Intake runner volume: 190cc; Exhaust runner volume: 90cc; Intake valve diameter: 2.05"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .580"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: Same as OE 9.5°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets on pages 84-85. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. IMPORTANT NOTE: “Compact charge” kidney shape combustion chamber design. Intake and exhaust ports based on 2V design. Optimized spark plug location provides improved header clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. Performer RPM Clevor cylinder heads with 7/16" bolts on 289/302 engines, use Edelbrock stepped head bolt washer kit #9680.
Cylinder Head Specifications: Combustion chamber volume: 60cc; Intake runner volume: 190cc; Exhaust runner volume: 90cc; Intake valve diameter: 2.05"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .580"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: Same as OE 9.5°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets on pages 84-85. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. IMPORTANT NOTE: Compact charge kidney shape combustion chamber design. Intake and exhaust ports based on 2V design. Optimized spark plug location provides improved header clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. Performer RPM Clevor cylinder heads with 7/16" bolts on 289/302 engines, use Edelbrock stepped head bolt washer kit #9680.
Edelbrock Fuel Pressure Safety Switch #72211 can be used in conjunction with your nitrous systems to safeguard against inadequate fuel pressure. Preset at 7 psi.
Edelbrock; SBF; Head; 351c Cleveland Cylinder Head; Hydraulic Flat Tappet; Made In The USA; T-6; V8; Cylinder Heads; 61629
Edelbrock, SBF, Head, 351c Cleveland Cylinder Head, Hydraulic Flat Tappet, Made In The USA, T-6, V8, Cylinder Heads, 61629

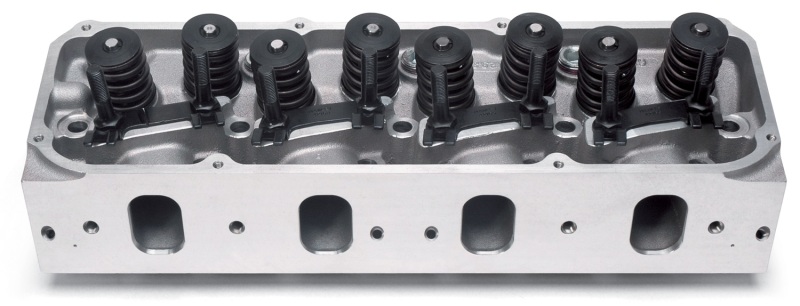

RPM Small-Block Ford 351 Cleveland Cylinder Head Hydraulic Flat Tappet
Edelbrock Cyl Head; 351C FORD 2V Perf RPM; Complete

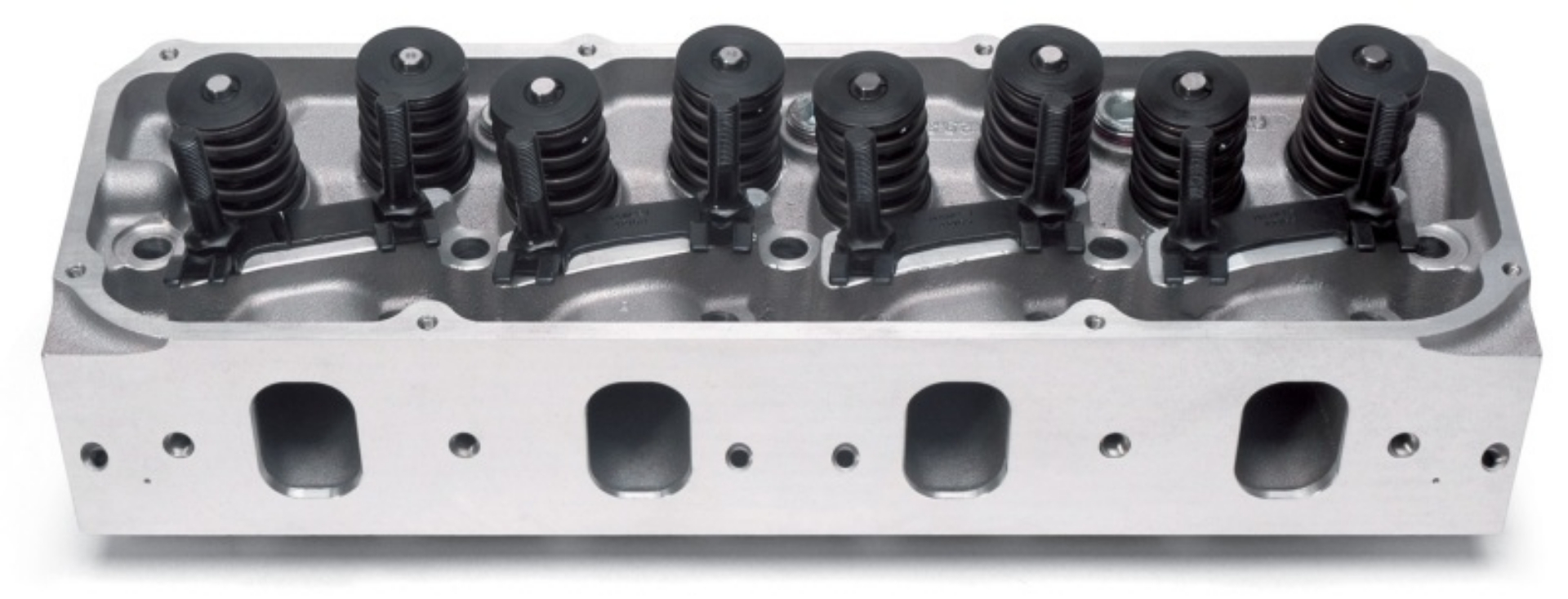

Edelbrock Cyl Head 351C Ford 2V Perf RPM Complete
Cyl Head; 351C FORD 2V Perf RPM; Complete
Ford:Small-Block Cleveland:351 (5.8L)
Edelbrock Cylinder Heads
Engine Cylinder Head
CYLINDER HEADS
CYLINDER HEAD
{ eo : 7in.}
{"eo":"7"}
Cyl. Head
