This Beehive Valve Spring Kit for LS engines is designed for Hydraulic Roller cams and includes carefully matched Beehive Springs, steel retainers, locks, seals and spring seats. With a .600" maximum lift, these Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life.
1.055"/1.290" OD, .650"/.885" ID Beehive valve spring; 105 lbs 1.800", 293 lbs 1.200"; Kit includes 26915-16 Beehive Valve Springs, 774-16 Steel Retainers, 623-16 7? Steel Valve Locks, 511-16 Valve Seals and 4705-16 Spring Seats; .600" maximum lift;
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed

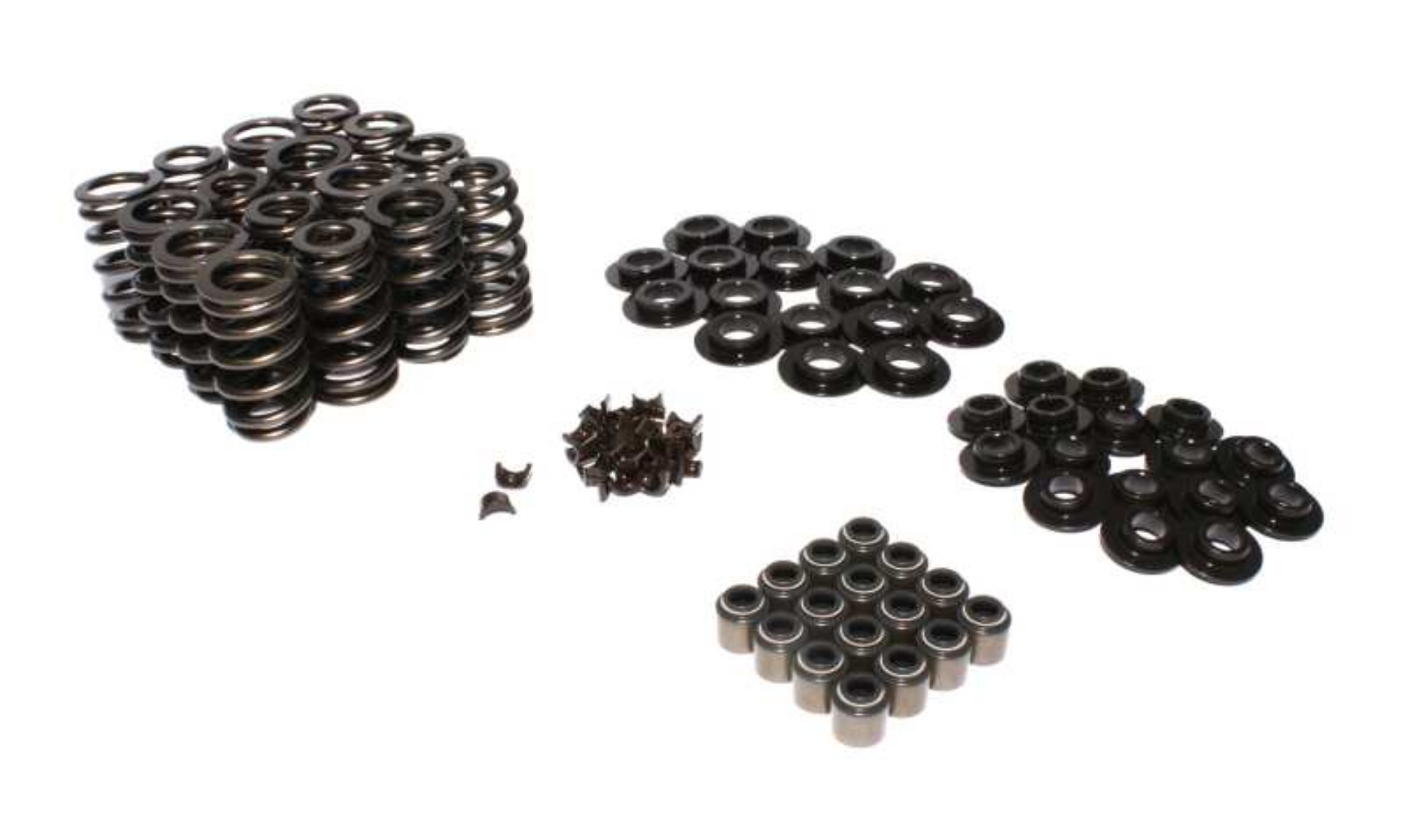

Including properly matched quality beehive valve springs, 7 degree locks, viton seals, hardened seats and lightweight tool steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .600" valve lift.
See 26918CS-KIT or 26918TS-KIT for Beehive spring kits that support up to .625" valve lift.
COMP Cams LS Engine Beehive Valve Spring Kit with Steel Retainers and 26915 Valve Springs
GM LS Beehive Valve Spring Kit w/ Chromemoly Steel Retainers; .600" Max Lift
COMP Cams Kit Beehive Spring Steel LS
26915CS-KIT - Eng Valve Spring Kit
BeehiveSpringKitCS.600"Lift
Engine Valve Spring Kit
Eng Valve Spring Kit
LS915CSKit
