Hard anodized valve body and new solenoid pack installed in every unit; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; Heavy duty cam & roller design low reverse one way clutch; New 4C billet spring retainer ; Steel girdle added to 2C piston to allow for more clutches and broader apply area ; BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum; Clutch count increased to hold high torque level - Over Drive 17% increase, Under Drive 20%, 2C 33% increase ; BD reinforced accumulator plate; TCC limit valve machined and sleeved to address high wear area with in pump; BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex; BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required; Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
Hard anodized valve body and new solenoid pack installed in every unit; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; Heavy duty cam & roller design low reverse one way clutch; New 4C billet spring retainer; Steel girdle added to 2C piston to allow for more clutches and broader apply area; BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum; Clutch count increased to hold high torque level - Over Drive 17% increase, Under Drive 20%, 2C 33% increase; BD reinforced accumulator plate; TCC limit valve machined and sleeved to address high wear area with in pump; BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex; BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

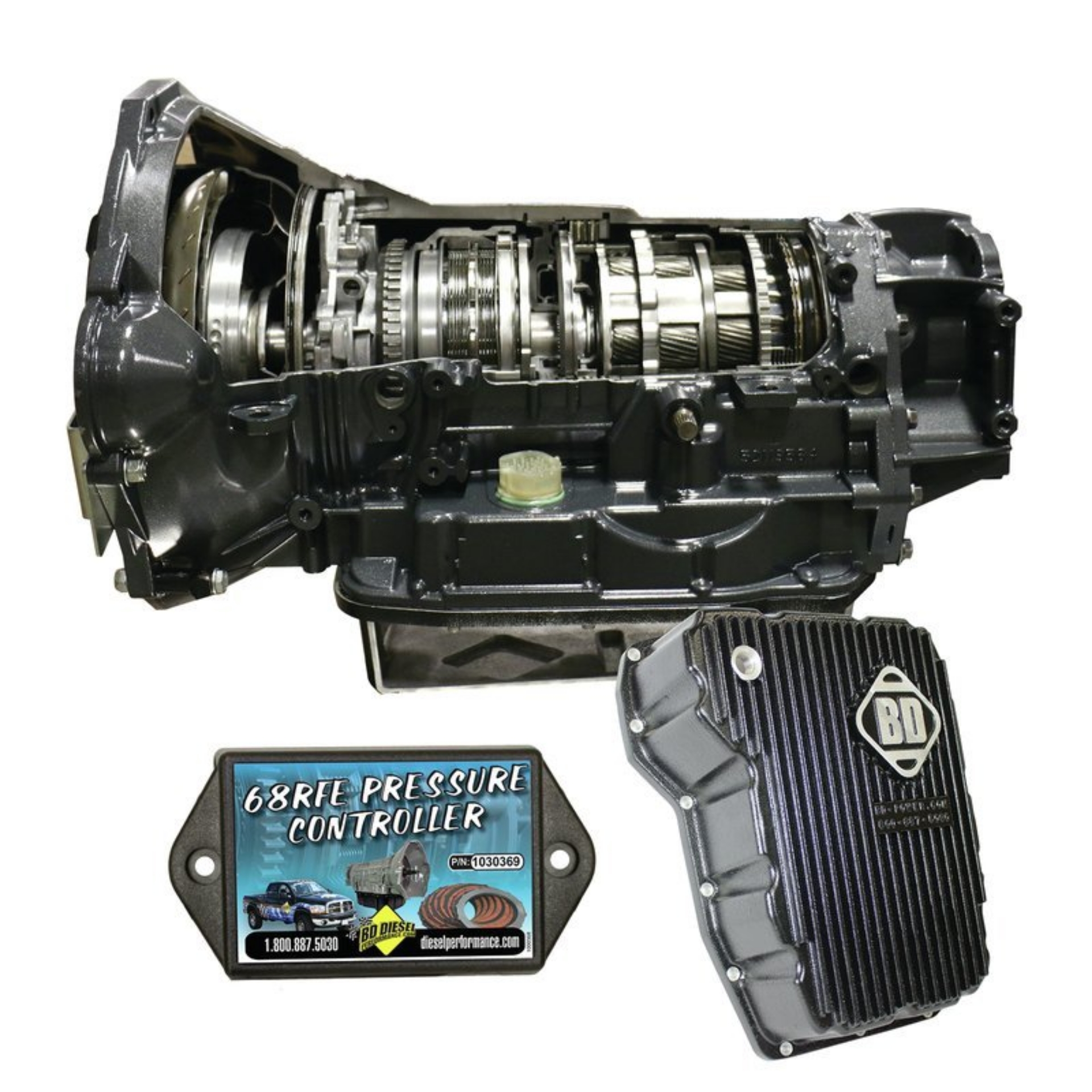

BD Diesel Transmission - 2007.5-2018 Dodge 68RFE 4WD C/W Billet Input Shaft
BD 68RFE Transmission-Dodge 2007.5-2018 4wd c/w Billet Input Shaft
Transmission - 2007.5-2017 Dodge 68RFE 4wd c/w Billet Input Shaft
TRANSMISSION 68RFE DODGE 2007-16 6.7 4WD
TRANSMISSION 68RFE DODGE 2007-18 6.7 4WD
Automatic Transmission Assembly
TRANS 68RFE BILLET
A/TAssembly
