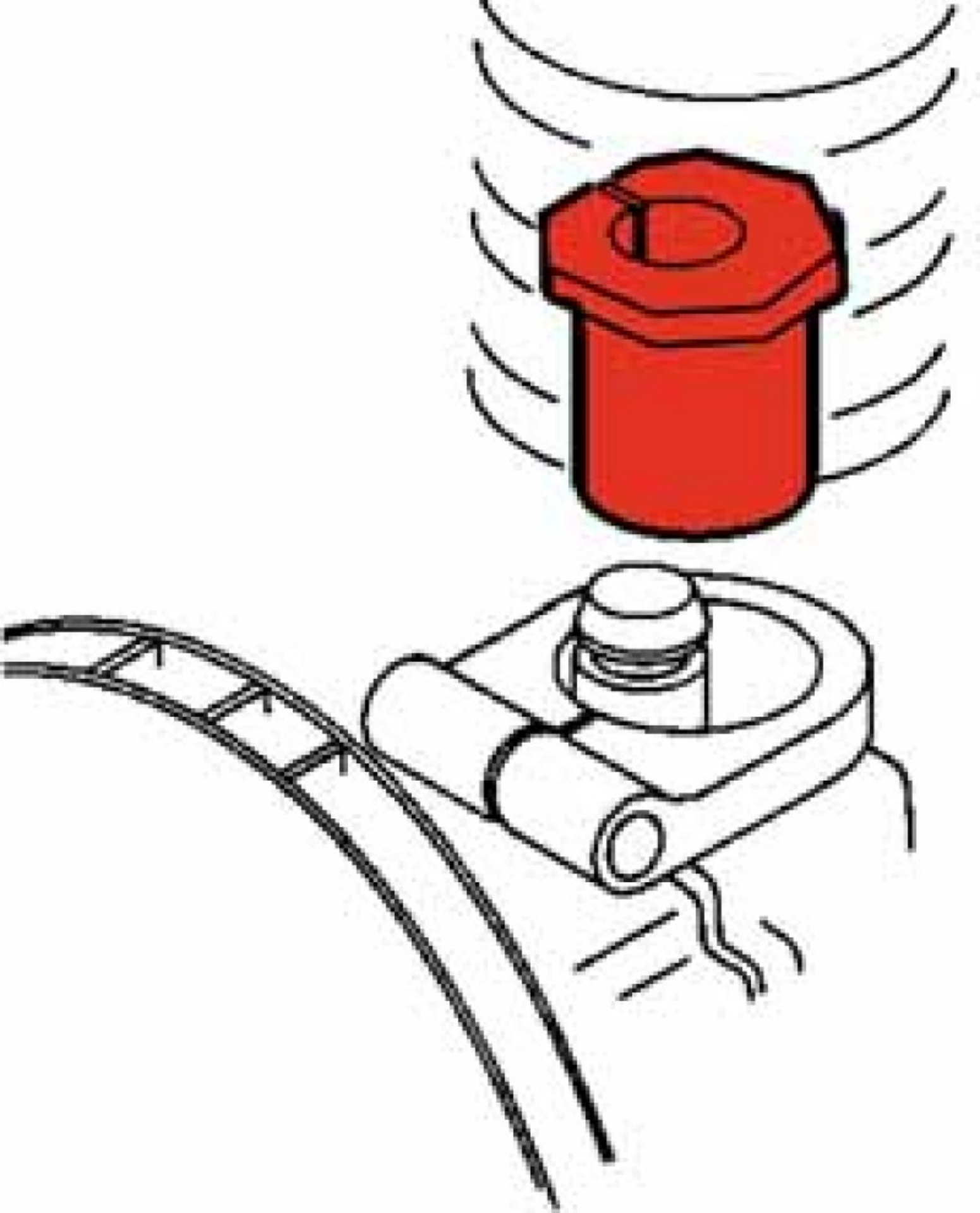

These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45°. Save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford andMazda 4WD light trucks/SUVS. Set 23180 contains 1 each: 23181,23182,23183,23184,23185,23186,23187,23188,23199
These popular sleeves are widely used to adjust caster and/or camber on many Ford and Mazda RWD & 4WD trucks. Toinstall, simply loosen and remove upper ball joint pinchbolt. Remove top snap ring if one is present. Use 77880 or88830 sleeve puller to remove
Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.
SPC Performance SET (9) CAM/CASTER SLVS
Alignment Caster / Camber Bushing Kit
CAM/CAST SLEEVE ASSORTMENT (9)
SET (9) CAM/CASTER SLVS
ALIGN BUSHNG
