Fabtech's FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35in tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4'' thick steel differential skid plate. The Basic system retains the front strut assembly for a smooth highway ride with ease of installation. The rear suspension system includes tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech's precise suspension geometry. Includes rear 2.25 Dirt Logic Stainless Steel shocks.
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING; 68. KIT DOES NOT FIT MODELS WITH FACTORY ELECTRONIC CONTROLLED SHOCKS.

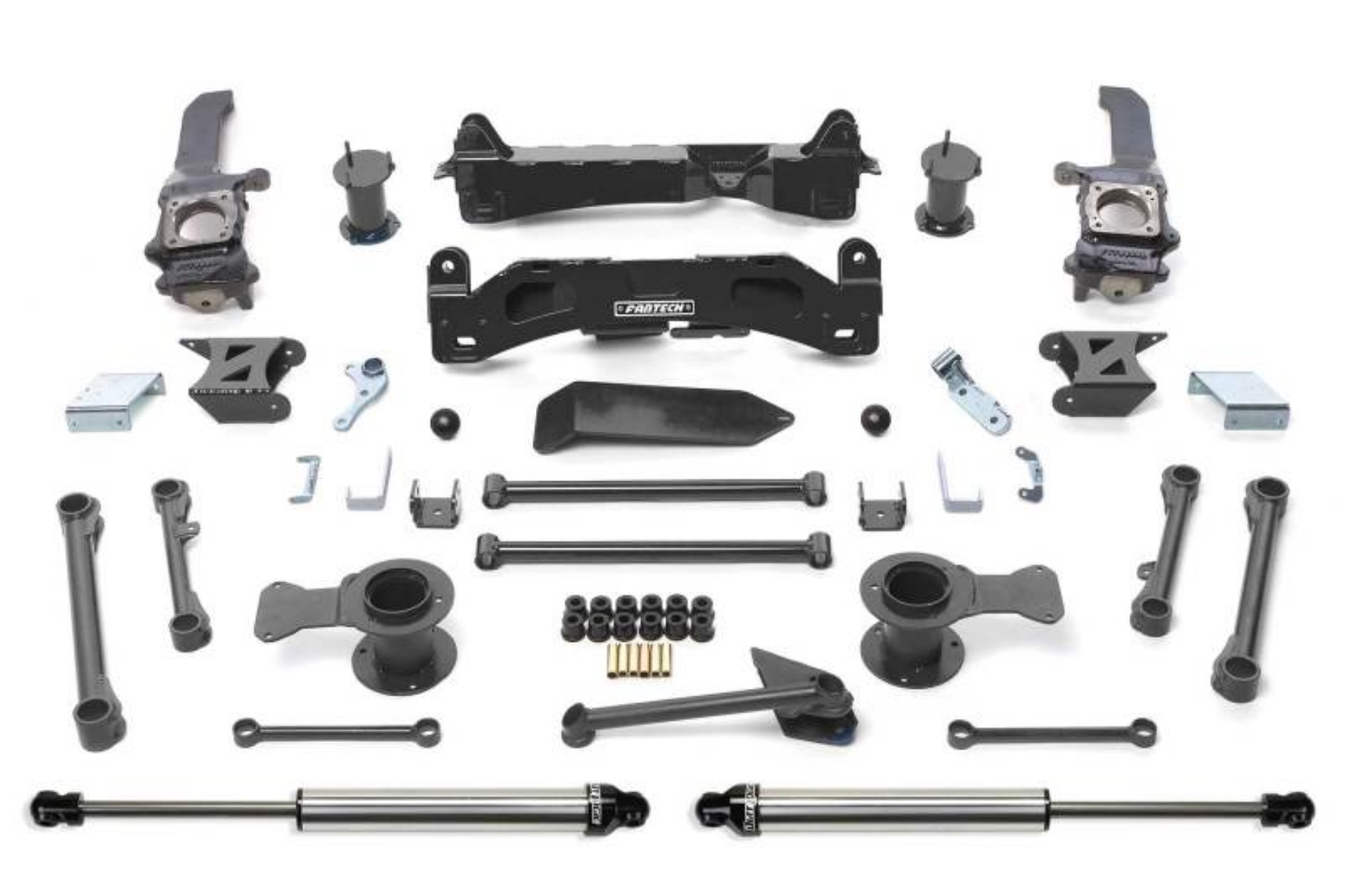

Fabtech 06-09 Toyota FJ 4WD 6in Basic System w/DL Shocks
6in. BASIC SYS W/DLSS SHKS 06-09 TOYOTA FJ 4WD
6" BASIC SYS W/DLSS SHKS 06-09 TOYOTA FJ 4WD
6" BASIC SYS W/DLSS
Suspension Lift Kit
LftKt-Suspw/Shock
