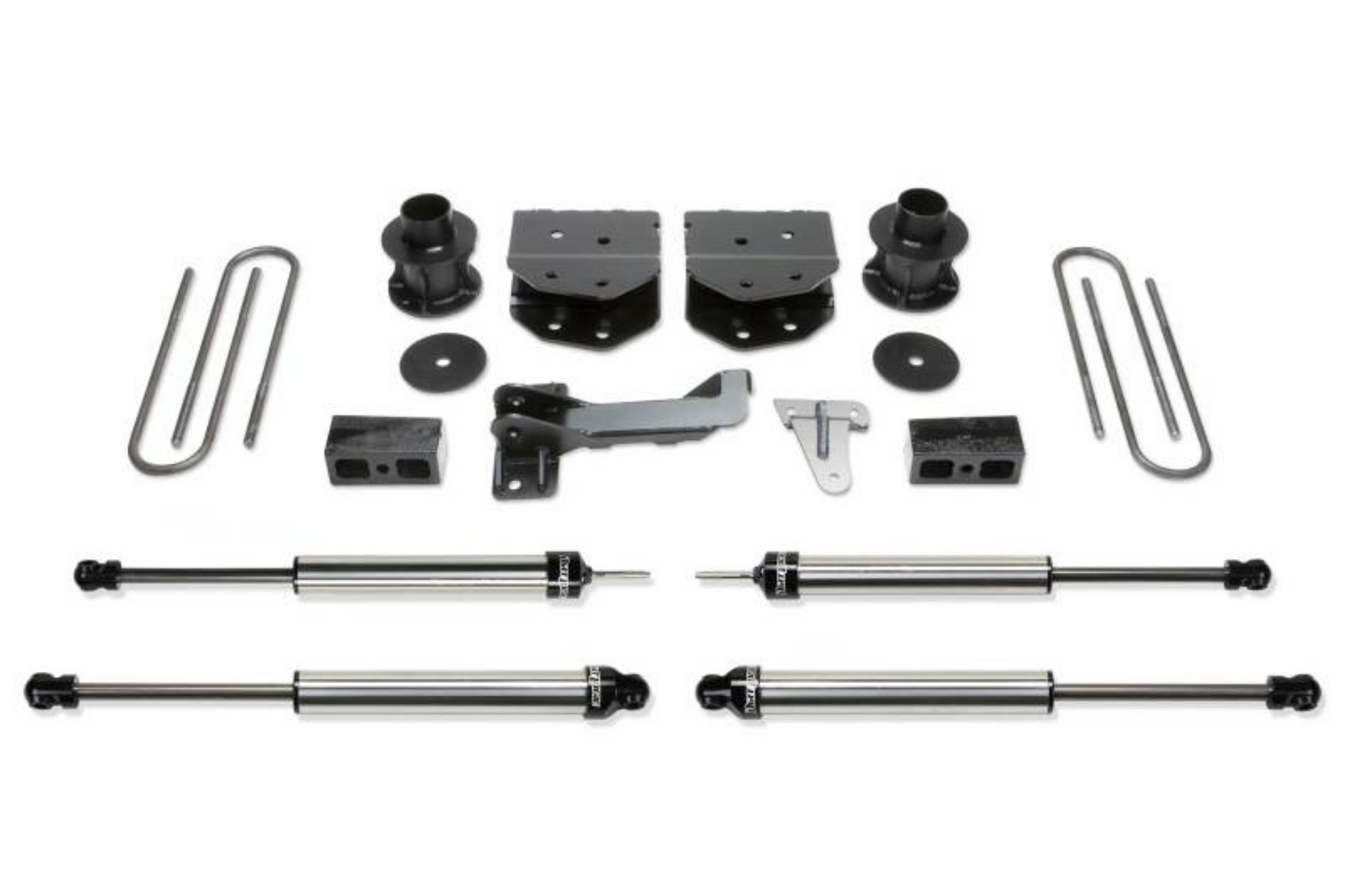

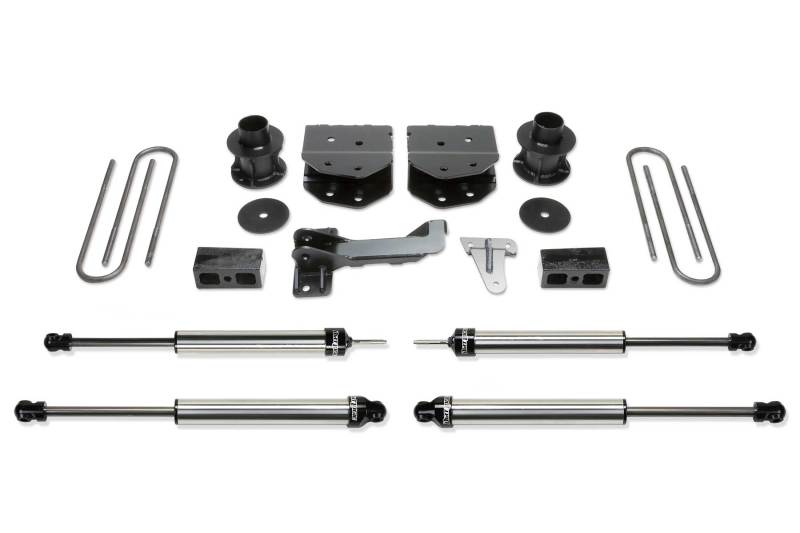

The 4'' Budget System utilizes the factory front coil springs with a steel upper spacer providing 4'' of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35'' tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.
Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.
TIRE SIZE - 35/12.50R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING
Fabtech 05-07 Ford F250/350 4WD 4in Budget System w/DL Shocks
4in. BUDGET SYS W/DLSS SHKS 2005-07 FORD F250/350 4WD
4" BUDGET SYS W/DLSS SHKS 2005-07 FORD F250/350 4WD
4" BUDGET SYS W/DLSS
Suspension Lift Kit
LftKt-Suspw/Shock
